Curved linear guide

Choose your individual rail

Based on the proven drylin® W series, igus® is offering curved linear guides that are customised and equipped with guide carriages specifically developed for use with rails of various radii. This results in innovative solutions for applications with limited installation space, e.g. in operator ergonomics, stage technology or in the driver's cab of commercial vehicles, where monitors and control systems are designed in such a way that safe and easy accessibility is guaranteed.

Your benefitsCurved linear guide componentsFree sampleFacts about curved linear guidesApplication examplesWhich rail is suitable for which carriage?

Your advantages with curved linear guides

Curved linear rails

More ergonomics

With curved rails for more design freedom, e.g. in workstations

Single rails

More variability

In design thanks to flexible distances with parallel single rails.

Installation time

Less installation time

Faster assembly thanks to double rails instead of two single rails fitted in parallel.

drylin W assembly instructions

Variety of materials

Great variety of materials

For a wide range of applications (e.g. automation, food sector, medical technology, pharmaceutical industry).

smooth running

Smooth running

Carriage with hybrid roller bearings for smooth operation.

Weight-optimised

Weight-optimised

With extremely lightweight carbon rail material.

Buy carbon profile rails

Components of curved linear guides

drylin-WSB-10-40-RK300QS
Double rail, WSB, round, quarter circle
Buy double rail, quarter circle
drylin-WSB-10-40-RK300F
Double rail, WSB, round, full circle
Buy double rail, full circle
drylin-WSB-10-40-RK300HS
Double rail, WSB, round, semicircle
Buy double rail, half circle
drylin-WSB-10-40-RK300QS
Double rail, WSB, angular, quarter circle
Buy double rail, square, quarter circle
drylin-WI3UBP-0-10
Double rail, WSB, round, convex
Buy double rail, convex
drylin-WSB-10-40
Double rail, WSB, angular, semicircle
Buy double rail, square, half circle
drylinWSB-06-30-RX175Q
Double rail, WSB, angular, convex
Buy double rail, square, convex
drylin-WKB-10-40-HKA_VA
Pre-loaded carriage for curved rail with manual clamp
Buy a carriage for curved rail with manual clamp
drylin-WI3UBP_VA
Single bearing for curved rails, WI3UBP
Buy single bearing

Order a free sample - a linear carriage made from 100% recyclate!

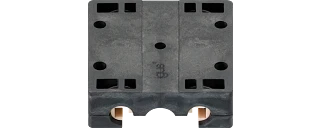

WWBP linear carriages made from recyclate

WWBP linear carriages for curved guides

  • Extremely lightweight components
  • Quick installation on standard curved rails
  • 100% lubrication-free and maintenance-free due to igus® high-performance polymers
  • No need for external lubrication
  • WWBSP versions have a stainless-steel carriage plate
  • Made of 100% recycled iglidur® polymer eco P
Order free of charge

Facts about curved linear guide

Placeholder
  • Lubrication-free drylin® W carriage for curved rails
  • Variable profile directions (convex, concave, curved bend)
  • Torque-resistant alternative to bent tube profiles
  • Bending option depending on radius, rail length, bearing/carriage and installation
  • Customised project service (radii, rail profiles, coating)

Application example

banner
OFF-LINE configurator

Lubrication-free and maintenance-free offline configurator for vehicles with curved drylin® W rails.

To the OFF-LINE configurator
banner
Curved linear guide

Curved drylin® linear rails and energy chains for rotation from igus make monitors move.

About the monitors

Which rail is suitable for which carriage?

Part numberCarriage for curved railCarriage for curved rail with pretensionCarriage for curved rail with manual clamp Pretension with manual clampProfile directionForm
WSB-06-30-RK300FWWB-06-30-06-R300WWB-06-30-06-R300-PWWB-06-30-06-R300-HKAWWB-06-30-06-R300-HKACurveFull circle
WSB-06-30-RK300HSWWB-06-30-06-R300WWB-06-30-06-R300-PWWB-06-30-06-R300-HKAWWB-06-30-06-R300-P-HKACurveHalf circle
WSB-06-30-RK300QSWWB-06-30-06-R300WWB-06-30-06-R300-PWWB-06-30-06-R300-HKAWWB-06-30-06-R300-P-HKACurveQuarter circle
WSB-06-30-RK-500HSWWB-06-30-06-R500WWB-06-30-06-R500-PWWB-06-30-06-R300-HKAWWB-06-30-06-R500-P-HKACurveHalf circle
WSB-06-30-RK-500QSWWB-06-30-06-R500WWB-06-30-06-R500-PWWB-06-30-06-R300-HKAWWB-06-30-06-R500-P-HKACurveQuarter circle
WSB-10-40-RK300FWWB-10-40-10-R300WWB-10-40-10-R300-PWWB-10-40-10-R300-HKAWWB-10-40-10-R300-P-HKACurveFull circle
WSB-10-40-RK300HSWWB-10-40-10-R300WWB-10-40-10-R300-PWWB-10-40-10-R300-HKAWWB-10-40-10-R300-P-HKACurveHalf circle
WSB-10-40-RK300QSWWB-10-40-10-R300WWB-10-40-10-R300-PWWB-10-40-10-R300-HKAWWB-10-40-10-R300-P-HKACurveQuarter circle
WSB-10-40-RK500FWWB-10-40-10-R500WWB-10-40-10-R500-PWWB-10-40-10-R500-HKAWWB-10-40-10-R500-P-HKACurveFull circle
WSB-10-40-RK500HSWWB-10-40-10-R500WWB-10-40-10-R500-PWWB-10-40-10-R500-HKAWWB-10-40-10-R500-P-HKACurveHalf circle
WSB-10-40-RK500QSWWB-10-40-10-R500WWB-10-40-10-R500-PWWB-10-40-10-R500-HKAWWB-10-40-10-R500-P-HKACurveQuarter circle

More information is also available in our video
