drylin® N - Low profile linear guide system NK-02-80

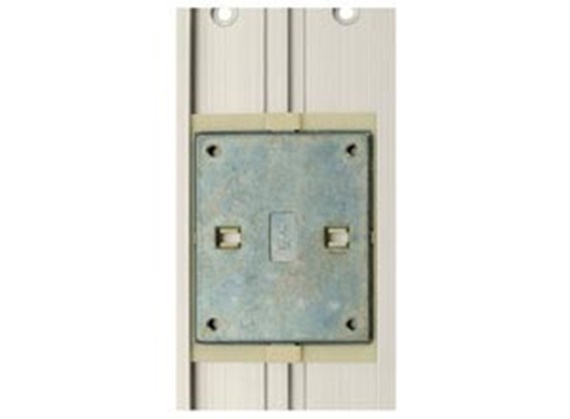

Version 02 - standard with threaded hole

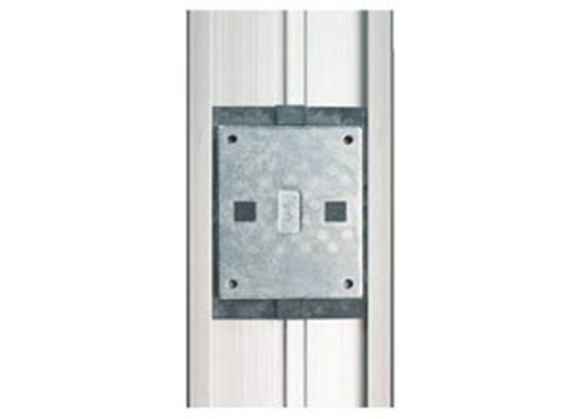

Version 12 - coated with threaded hole

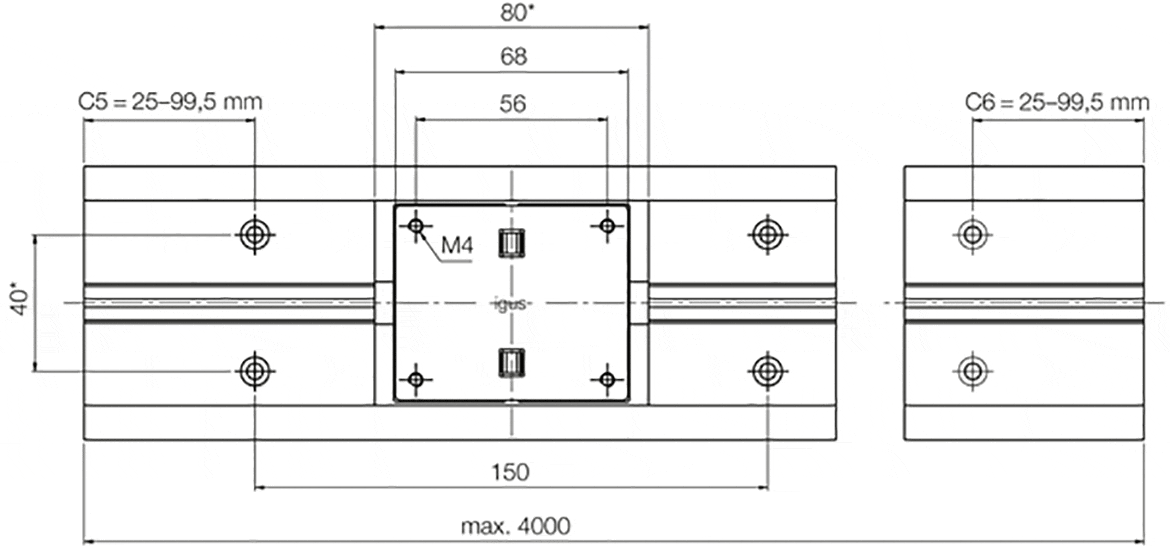

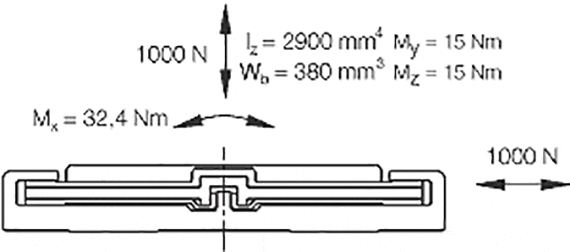

Part No.	Max. rail lengths	a	C4	A3	C5=C6		h	h1	K1*	ly	lz	Rail weight	Price / m
	[L max.]				Min.	max.				[mm²]	[mm²]	[g/m]
NS-01-80	4000	80	150	40	25	99.5	11	1.5	M4	271200	2900	1140	52.15 EUR
NS-01-80-AR	4000	80	150	0	20	99.5	11	1.5		27120	2900	1140	62.58 EUR
NS-01-80-UNGEBOHRT	4000	80	0	0			11	1.5		27120	2900	1140	46.68 EUR

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

For unbored rails please indicate "Unbored" in the remark.
* for cylinder screw with low head

Version 02 - standard with threaded hole:

Order no.	Designation	Weight of carriage
		[g]
NW-02-80	Standard carriage	100	9.86 EUR
NW-02-80-LLY	Standard carriage, floating bearing y-direction	100	9.86 EUR
NW-02-80-LLZ	Standard carriage, floating bearing in z-direction	100	9.86 EUR
NW-02-80-LLYZ	Standard carriage, floating bearing y- and z-direction	100	9.86 EUR

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

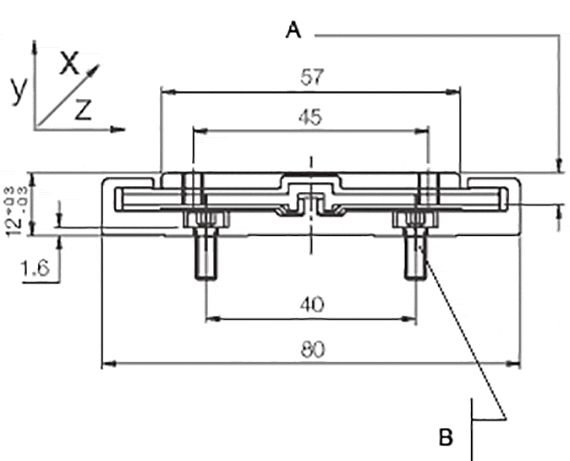

Version 02: Dimensions [mm] - guide carriages

Part. No.	H	A	C	C1	C2	A2	H2	K4	Spmin.	DpØmin.	Weight
	±0,35										[g/m]
NW-02-80	12	57	80	68	56	45	0	M4	0	0	100
NW-02-80-LLY	12	57	80	68	56	45	0	M4	0	0	100
NW-02-80-LLZ	12	57	80	68	56	45	0	M4	0	0	100
NW-02-80-LLYZ	12	57	80	68	56	45	0	M4	0	0	100

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Version 12 - coated with threaded hole:

Order no.	Designation	Weight of carriage
	:	[g]
NW-12-80	Moulded carriage	100	9.86 EUR
NW-12-80-LLY	Moulded carriage, floating bearing y-direction	100	9.86 EUR
NW-12-80-LLZ	Moulded carriage, floating bearing z-direction	100	9.86 EUR
NW-12-80-LLYZ	Moulded carriage, floating bearing y and z-direction	100	9.86 EUR

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Version 12: Dimensions [mm] - guide carriages

Part. No.	H	A	C	C1	C2	A2	H2	K4	Spmin.	DpØmin.	Weight
	±0,35										[g/m]
NW-12-80	12	57	83	68	56	45	0	M4	0	0	100
NW-12-80-LLY	12	57	83	68	56	45	0	M4	0	0	100
NW-12-80-LLZ	12	57	83	68	56	45	0	M4	0	0	100
NW-12-80-LLYZ	12	57	83	68	56	45	0	M4	0	0	100

More about selected part:

3D-CAD

Sample request

PDF

Quote request

myCatalog

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriagel
3. Entry of the rail length in mm
4. Selection of the carriage options
5.

Hint:

Detailed information can be found below in the drawings as well as in the below-mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.

1

no floating bearing

2

Floating bearing in z-direction

3

Floating bearing in y-direction

4

Floating bearing in yz-direction
