Energy chains supply 16 trolleys on 15,000t shipyard crane

For this gigantic Goliath shipyard crane, a special solution had to be found for the cable guidance. Due to the enormous cable package with correspondingly high weight, the manufacturer decided to divide the cable load to be pulled by the 15,000t crane among 16 crane trolleys at once.
This design feature, which is rather unusual for a shipyard crane, helped to provide not only a realistic but also durable solution for the cable guidance. On the other hand, the manufacturer had to come up with something for the concrete implementation of the guidance. The goal was to find compact systems that fit on the crane girder, are robust and gentle on cables, and travel reliably.

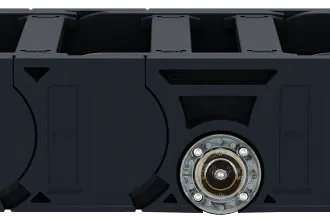

For the implementation of this exciting large-scale project we were allowed to offer our energy chains for all trolleys. Today, exactly 16 of our Heavy Duty rol e-chain 4040RHDB series are operating here. On travels of 72 to 77m, the upper run rolls almost frictionless over the lower run and reduces the required drive energy to less than 25% compared to gliding energy chain solutions. This means that travels of several 100m can also be implemented without any problems. Various design features of the e-chain such as reinforced side parts or a strong angular stop-dog increase the stability of the chain and protect the cables. Thanks to the installed strain relief on the cables, the strain on the cables is reduced and the service life is increased.
