E2/000 as version with extender crossbar version - two parts

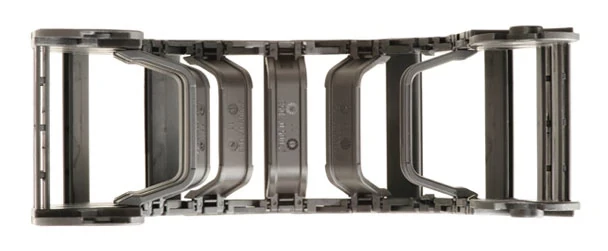

E/2000 with extender crossbars

A product range of extender crossbars that can be opened is now available for the e-chain® standard - the igus® E2/000 system - for the 2400, 2600 and 3400 series. Using extender crossbars instead of crossbars greatly enlarges the interior of the e-chain®, which means that even oversized hoses are guided safely. The product range of special cable-friendly interior-separation elements allows the filling space to be further divided so that you can assemble cables and hoses from the modular system according to your requirements.

Suitable for hoses with a max. outer diameter of 80mm.

Choose between an openable inner or outer radius.

Suitable modular interior separation for optimum segmentation of the inner space.

Cable-friendly design of extender crossbar and interior separation.

High holding force of the extender crossbar.

Enlarged interior, secure fit of separators and interior separation even when the e-chain® is open.

Product range with openable extender crossbars available for 2400, 2600 and 3400 series.

Special folding mechanism, openable from the left or right.

Selection guide e-chains®
Specific parameters and a comparison table help you find the right e-chain® quickly.

Assembly instructions
Joining and separating chain links, filling the e-tubes.

Recommended mounting accessories

Application examples
Applications in a wide range of industrial sectors and the igus® test laboratory.

2400/2500/2450 series

Inner height hi: 41mm
Inner width Bi: 50 to 100mm
Bend radius R: 75 to 250mm
Pitch: 33.3mm

e-chain®, 2400/2500/2450 series, version with extender crossbars

2600/2700/2650 series

Inner height hi: 56mm
Inner width Bi: 75 to 150mm
Bend radius R: 100 to 250mm
Pitch: 33.3mm

e-chains, 2600/2700/2650 series, version with extender crossbars

3400/3500/3450 series

Inner height hi: 85mm
Inner width Bi: 100 to 200mm
Bend radius R: 125 to 300mm
Pitch: 67mm

e-chain®, 3400/3500/3450 series, version with extender crossbars

The E2 standard

Quick opening from the right or left with a screwdriver or by hand - opening mechanism accessible from above

Fast installation by hand - secure fit without additional locking devices

Secure fit of the separators and interior separation, even when the e-chain® is open

Excellent mechanical stability; design and material ensure a long service life

Typical industries and applications

General construction machinery

Conveyor technology

Construction machinery

Woodworking machines

Machine tools

Glass machines

Plastics machinery

Long travels

Semiconductors

Theatre and entertainment industry

Vehicles

And much more
